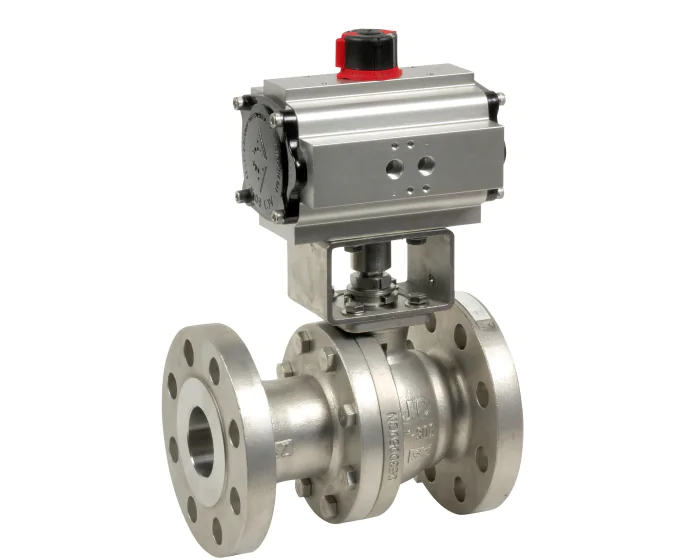

The 530IIT series JC VALVES stainless steel ball valve has a CF8M body and ball, and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 403.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Position | Normally closed |
| Packing gland | Graphite |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | PTFE |
| Ball material | CF8M |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting | 530IIT015015100 | S1002180 |
€396.63
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return | 530IIT015016101 | S1002181 |
€432.19
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting | 530IIT020015101 | S1002182 |
€477.59
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return | 530IIT020016102 | S1002183 |
€533.47
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting | 530IIT025015101 | S1002184 |
€479.96
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return | 530IIT025016102 | S1002185 |
€535.76
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting | 530IIT040015102 | S1002186 |
€790.50
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return | 530IIT040016103 | S1002187 |
€846.26
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting | 530IIT050015102 | S1002188 |
€910.37
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return | 530IIT050016104 | S1002189 |
€1,017.14
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting | 530IIT080015105 | S1002190 |
€1,773.86
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return | 530IIT080016106 | S1002191 |
€1,948.19
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting | 530IIT100015106 | S1002192 |
€2,548.73
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Spring return | 530IIT100016107 | S1002193 |
€2,873.33
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Double acting | 530IIT150015107 | S1002194 |
€5,801.66
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return | 530IIT150016108 | S1002195 |
€6,237.77
(excl. btw)
|
add to cart |
